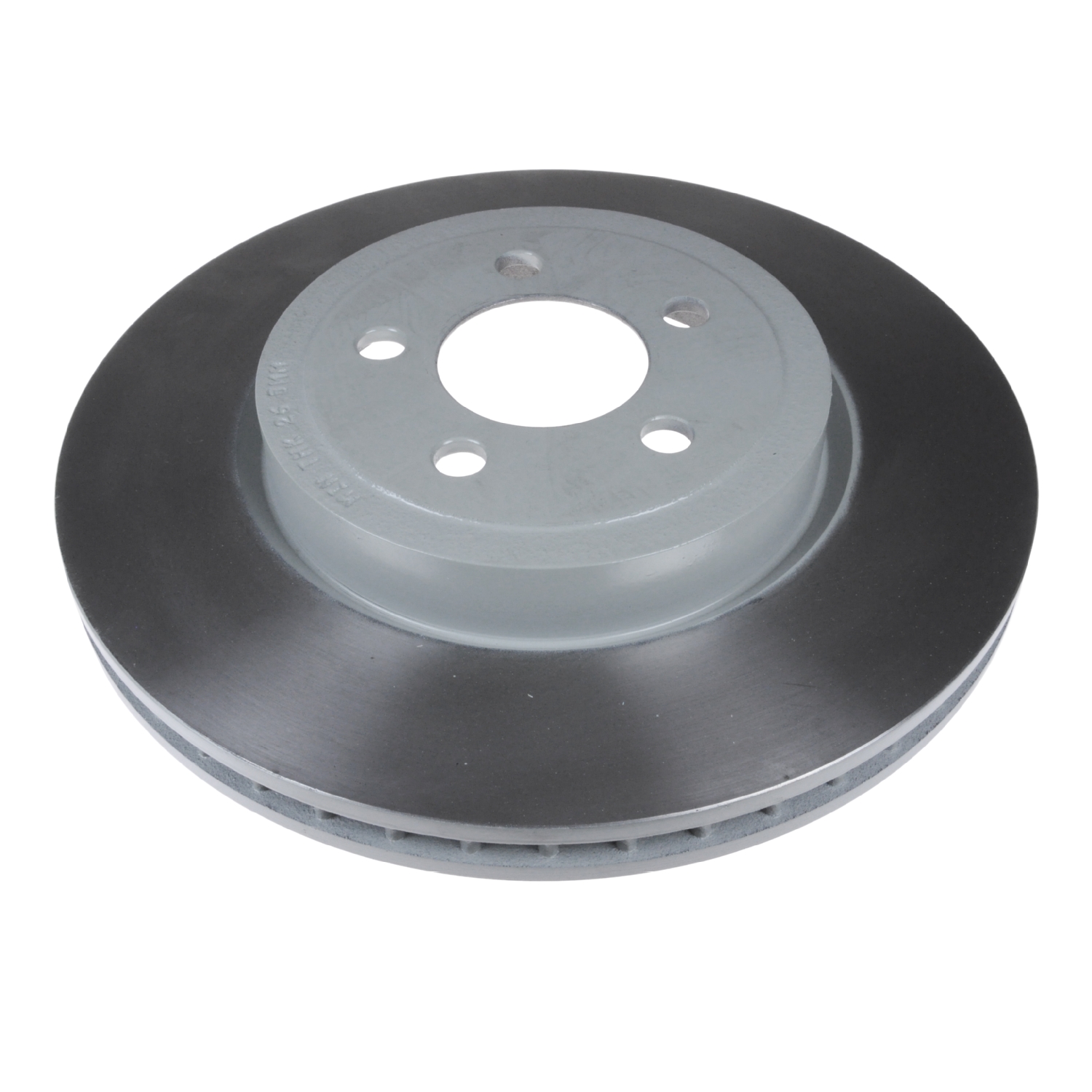

Front Axle Brake Disc
BLUE PRINT ADA104370
Front Axle
These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
Specifications
Brake Disc Thickness [mm]
28.1mm
Rim Hole Number
5-Hole
Thickness [mm]
55mm
Outer Diameter [mm]
345mm
Bolt Hole Circle Ø [mm]
115mm
Surface
Coated
Brake Disc Type
internally vented
Fitting Position
Front Axle
Minimum thickness [mm]
2,650mm
Centering Diameter [mm]
73mm
Observe service information
EAN / Barcode
5050063133974
OEM Part Numbers
- CHRYSLER K04779197AA
- CHRYSLER K04779197AB
- CHRYSLER K04779197AC
- CHRYSLER K04779197AD
- CHRYSLER K04779197AF
- CHRYSLER K05154118AA
- CHRYSLER K05154118AB
- CHRYSLER K05154118AC
- CHRYSLER 04779197AA
- CHRYSLER 04779197AB
- CHRYSLER 04779197AC
- CHRYSLER 04779197AD
- CHRYSLER 04779197AE
- CHRYSLER 04779197AF
- CHRYSLER 04779197AG
- CHRYSLER 05154118AA
- CHRYSLER 05154118AB
- CHRYSLER 05154118AC
- CHRYSLER 4779197AE
- CHRYSLER 4779197AF
- CHRYSLER 4779197AG
- CHRYSLER 5154118AB
- CHRYSLER 5154118AC
- LANCIA K04779197AE
- LANCIA K04779197AF
- LANCIA K05154118AB
